Zirconium Oxide

DK-1 Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitor, special ceramics, catalysts

Form and packaging

White powder, 15 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.80
(Min%)		 0.05
(Max%)		 0.01
(Max%)		 0.01
(Max%)		 2.00
(Max%)		 1.5–2.5
(µm)		 20–30
(m2/g)

Particle size distribution

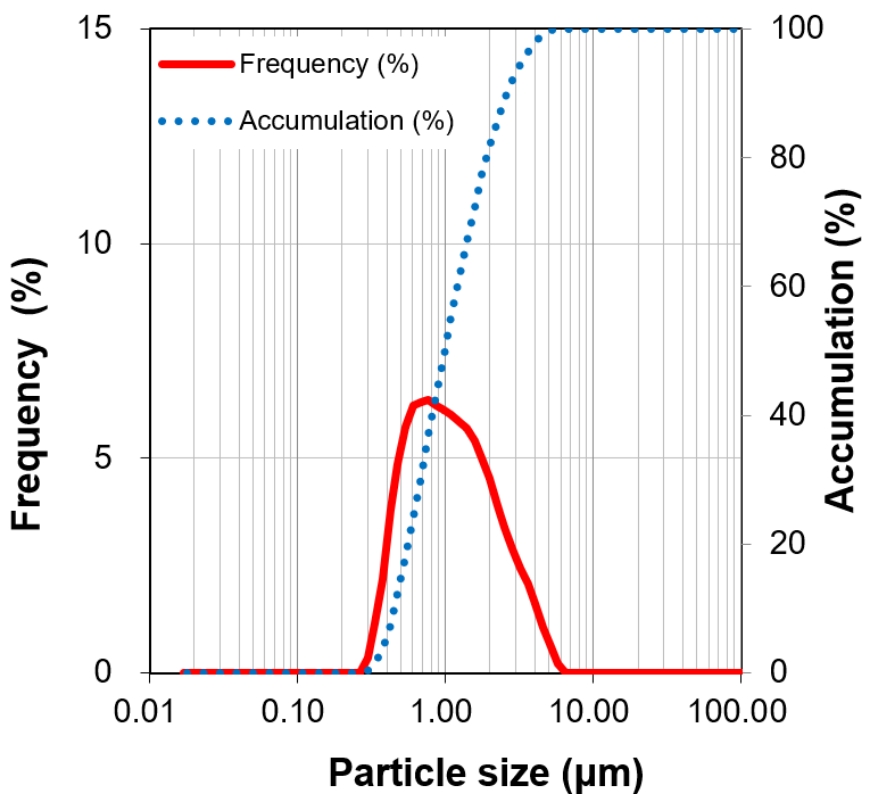

Fig. Particle size distribution

SEM images

SEM images01
SEM images01

DK-2 Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitor, special ceramics, catalysts

Form and packaging

White powder, 20 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.50
(Min%)		 0.15
(Max%)		 0.05
(Max%)		 0.30
(Max%)		 1.00
(Max%)		 1.5–2.5
(µm)		 4–9
(m2/g)

Particle size distribution

Fig. Particle size distribution

SEM images

SEM images　01
SEM images　02

DK-3CH Zirconium Oxide ZrO2

Applications

Optical glass, artificial jewels

Form and packaging

White powder, 20 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.80
(Min%)		 0.05
(Max%)		 0.005
(Max%)		 0.01
(Max%)		 1.00
(Max%)		 11–17
(µm)		 3–6
(m2/g)

Particle size distribution

Fig. Particle size distribution

SEM images

SEM images01
SEM images02

UEP Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitor, special ceramics, catalysts

Form and packaging

White powder, 10 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.80
(Min%)		 0.05
(Max%)		 0.01
(Max%)		 0.01
(Max%)		 2.00
(Max%)		 0.4–0.7
(µm)		 20–30
(m2/g)

Particle size distribution

Fig. Particle size distribution

SEM images

SEM images01
SEM images02

RC-100 Zirconium Oxide ZrO2

Applications

Catalysts

Form and packaging

White powder, 10 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.50
(Min%)		 0.05
(Max%)		 0.01
(Max%)		 0.01
(Max%)		 5.00
(Max%)		 1.5–4
(µm)		 80–120
(m2/g)

Particle size distribution

Fig. Particle size distribution

TMZ Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitors, special ceramics

Form and packaging

Light yellow to yellow powder, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
(D50)
98.5
(Min%)		 0.5
(Max%)		 0.3
(Max%)		 0.3
(Max%)		 1.1 ±0.4
(µm)

Particle size distribution

Fig. Particle size distribution

MIZ Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitor, special ceramics

Form and packaging

Light yellow to white powder, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
(D50)
98.0
(Min%)		 0.7
(Max%)		 0.2
(Max%)		 0.6
(Max%)		 1.1 ±0.4
(µm)

Particle size distribution

Fig. Particle size distribution

ASR-1 Zirconium Oxide ZrO2

Applications

Spreading powder

Form and packaging

Light gray to white grains, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
94.0
(Min%)		 0.5
(Max%)		 0.2
(Max%)		 0.5
(Max%)		 106–150µm : 20–60%,
< 106 : 30–70%

ASR-2 Zirconium Oxide ZrO2

Applications

Spreading powder

Form and packaging

Light gray to white grains, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
94.0
(Min%)		 0.5
(Max%)		 0.2
(Max%)		 0.5
(Max%)		 > 75µm : 5–55%

ASF-1S Zirconium Oxide ZrO2

Applications

Spreading powder

Form and packaging

Light ocher grains, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
99.0
(Min%)		 0.4
(Max%)		 0.2
(Max%)		 0.3
(Max%)		 > 150µm : < 10%
75–150µm : 40–80%
< 75µm : 20–60%

ASF-2S Zirconium Oxide ZrO2

Applications

Spreading powder

Form and packaging

Light ocher grains, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
99.0
(Min%)		 0.4
(Max%)		 0.2
(Max%)		 0.3
(Max%)		 > 75µm : 5–40%

BR-QZ Zirconium Oxide ZrO2

Applications

Refractory materials, abrasives, pigments, special ceramics

Form and packaging

Light gray to white powder, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
(D50)
98.0
(Min%)		 0.6
(Max%)		 0.3
(Max%)		 0.4
(Max%)		 7 ±1.5
(µm)

Particle size distribution

Fig. Particle size distribution

BR-3QZ Zirconium Oxide ZrO2

Features

  • This product is characterized by a high friction force, but is relatively low in rotor aggression. It reduces judder or wheel dust. It also helps reduce brake noise.
  • The particle size distribution width is narrow because coarse particles have been removed. Thus, it can be expected to reduce the uneven wear of rotors.

General specifications

ZrO2+HfO2(%) SiO2(%) Fe2O3(%) TiO2(%) Al2O3(%) Mean particle size(μm)
Balance 0.23 0.20 0.23 0.11 3.1

Particle size distribution

Fig. Particle size distribution

SEM images

SEM images

BR-12QZ Zirconium Oxide ZrO2

Applications

Refractory materials, abrasives, pigments, special ceramics

Form and packaging

Light gray to white powder, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
(D50)
98.0
(Min%)		 0.6
(Max%)		 0.3
(Max%)		 0.4
(Max%)		 11 ±2
(µm)

Particle size distribution

Fig. Particle size distribution

BR-90G Zirconium Oxide ZrO2

Applications

Refractory materials, abrasives, pigments, special ceramics

Form and packaging

Light gray to white powder, 25 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Particle size
98.0
(Min%)		 0.6
(Max%)		 0.3
(Max%)		 0.4
(Max%)		 < 45 µm : 97% and more

Particle size distribution

Fig. Particle size distribution

SRP-2 Zirconium Oxide ZrO2

Applications

Piezoelectric elements, ceramic capacitor, special ceramics, catalysts

Form and packaging

White powder, 20 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.80
(Min%)		 0.05
(Max%)		 0.01
(Max%)		 0.01
(Max%)		 3.00
(Max%)		 0.7–1.9
(µm)		 25–30
(m2/g)

UEP-100 Zirconium Oxide ZrO2

Applications

Optical glass, special ceramics, catalysts

Form and packaging

White powder, 10 kg paper bag

General specifications

ZrO2+HfO2 SiO2 Fe2O3 TiO2 Ig.loss Particle size
(D50)		 Specific surface area
99.80
(Min%)		 0.05
(Max%)		 0.01
(Max%)		 0.01
(Max%)		 6.00
(Max%)		 0.4–0.7
(µm)		 80–120
(m2/g)

*The values listed on this page are not guaranteed values but reference values.
