Zirconium Oxide(Dry-Process)
*The values listed on this page are not guaranteed values but reference values.
TMZ Zirconium Oxide (ZrO2) D50=0.9–1.3(µm)
Applications
Piezoelectric elements, ceramic capacitors
Form and packaging
Light yellow to yellow powder, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Al2O3 | Particle size D50 |
|---|---|---|---|---|---|
| 98.5 (Min%) |
0.5 (Max%) |
0.3 (Max%) |
0.3 (Max%) |
0.6 (Max%) |
0.9–1.3 (µm) |
ASF-1S Zirconium Oxide ZrO2
Applications
Spreading powder
Form and packaging
Light ocher grains, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Particle size |
|---|---|---|---|---|
| 99.15 (Min%) |
0.4 (Max%) |
0.15 (Max%) |
0.3 (Max%) |
＞150µm : ≦10% 75–150µm : 40–80% ＜75µm : 20–60% |
ASF-2S Zirconium Oxide ZrO2
Applications
Spreading powder
Form and packaging
Light ocher grains, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Particle size |
|---|---|---|---|---|
| 99.15 (Min%) |
0.4 (Max%) |
0.15 (Max%) |
0.3 (Max%) |
＞ 75µm : 5–40% |
BR-QZ Zirconium Oxide (ZrO2) D50=5.5–8.5(µm)
Applications
Refractory materials, abrasives
Form and packaging
Light gray to white powder, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Al2O3 | Particle size D50 |
|---|---|---|---|---|---|
| 98.0 (Min%) |
0.6 (Max%) |
0.3 (Max%) |
0.4 (Max%) |
0.7 (Max%) |
5.5–8.5 (µm) |
Particle size distribution
BR-3QZ Zirconium Oxide (ZrO2) D50=2.0–4.0(µm)
Applications
Refractory materials, abrasives
Form and packaging
Light gray to white powder, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Al2O3 | Particle size D50 |
|---|---|---|---|---|---|
| 98.0 (Min%) |
0.6 (Max%) |
0.3 (Max%) |
0.4 (Max%) |
0.7 (Max%) |
2.0–4.0 (µm) |
Particle size distribution
BR-12QZ Zirconium Oxide (ZrO2) D50=9.0–13.0(µm)
Applications
Refractory materials, abrasives
Form and packaging
Light gray to white powder, 25 kg paper bag
Quality property
| ZrO2+HfO2 | SiO2 | Fe2O3 | TiO2 | Al2O3 | Particle size D50 |
|---|---|---|---|---|---|
| 98.0 (Min%) |
0.6 (Max%) |
0.3 (Max%) |
0.4 (Max%) |
0.7 (Max%) |
9.0–13.0 (µm) |

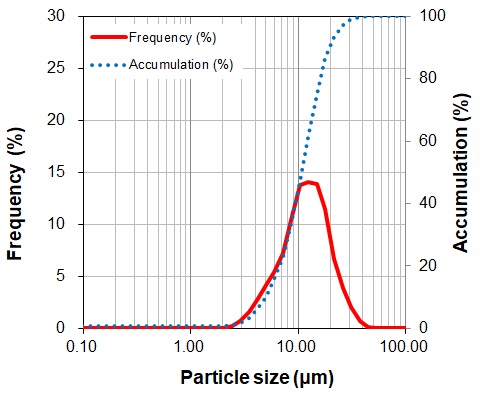

Particle size distribution
